Transverse Cutting Machine(Elevation Type)
Transverse Cutting Machine(Elevation Type)

    Transverse Cutting Machine(Elevation Type)

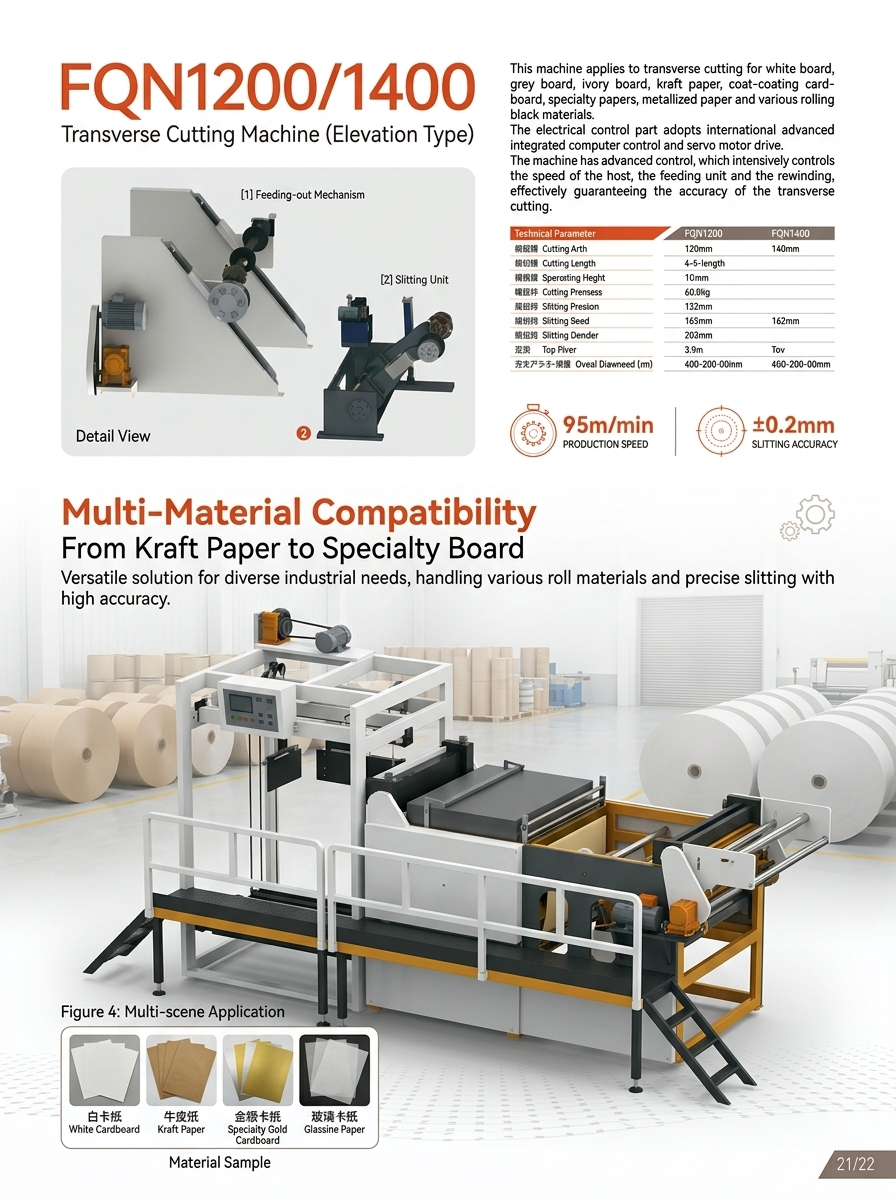

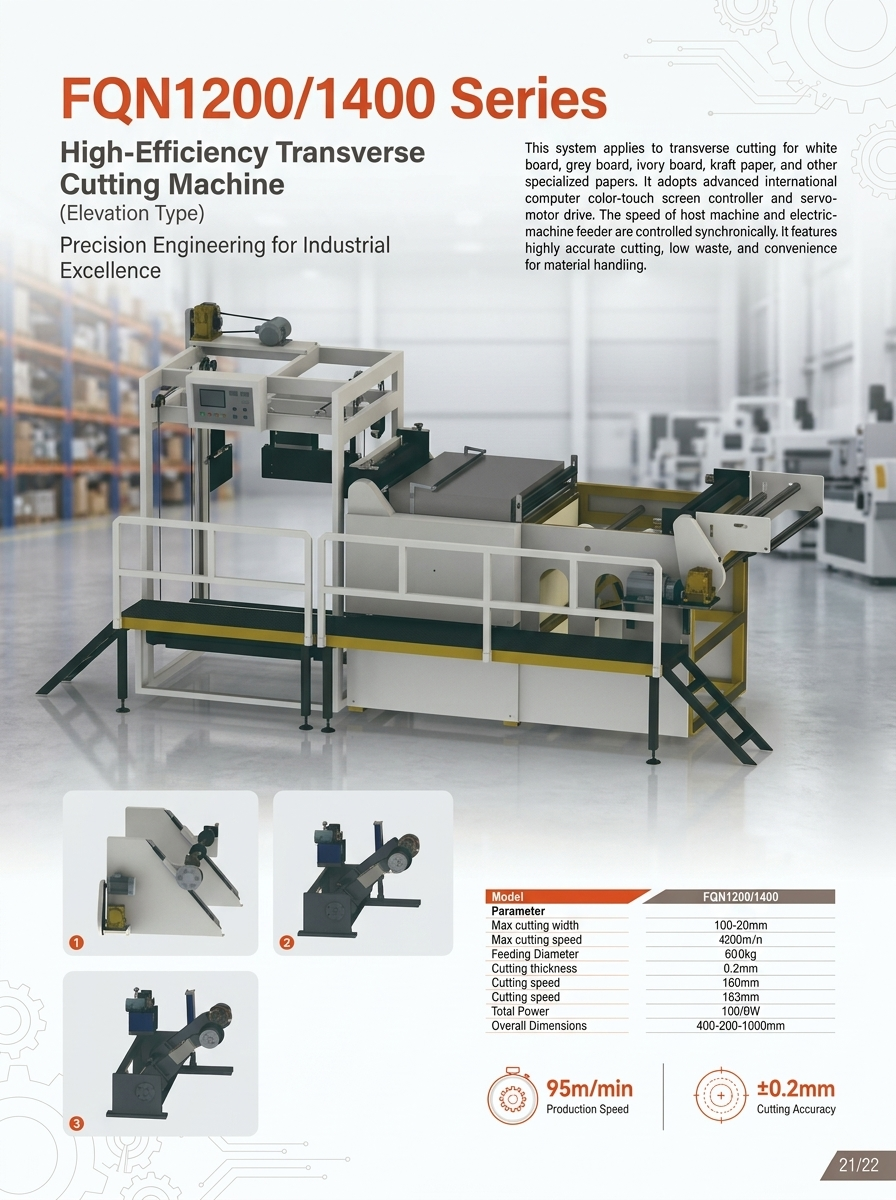

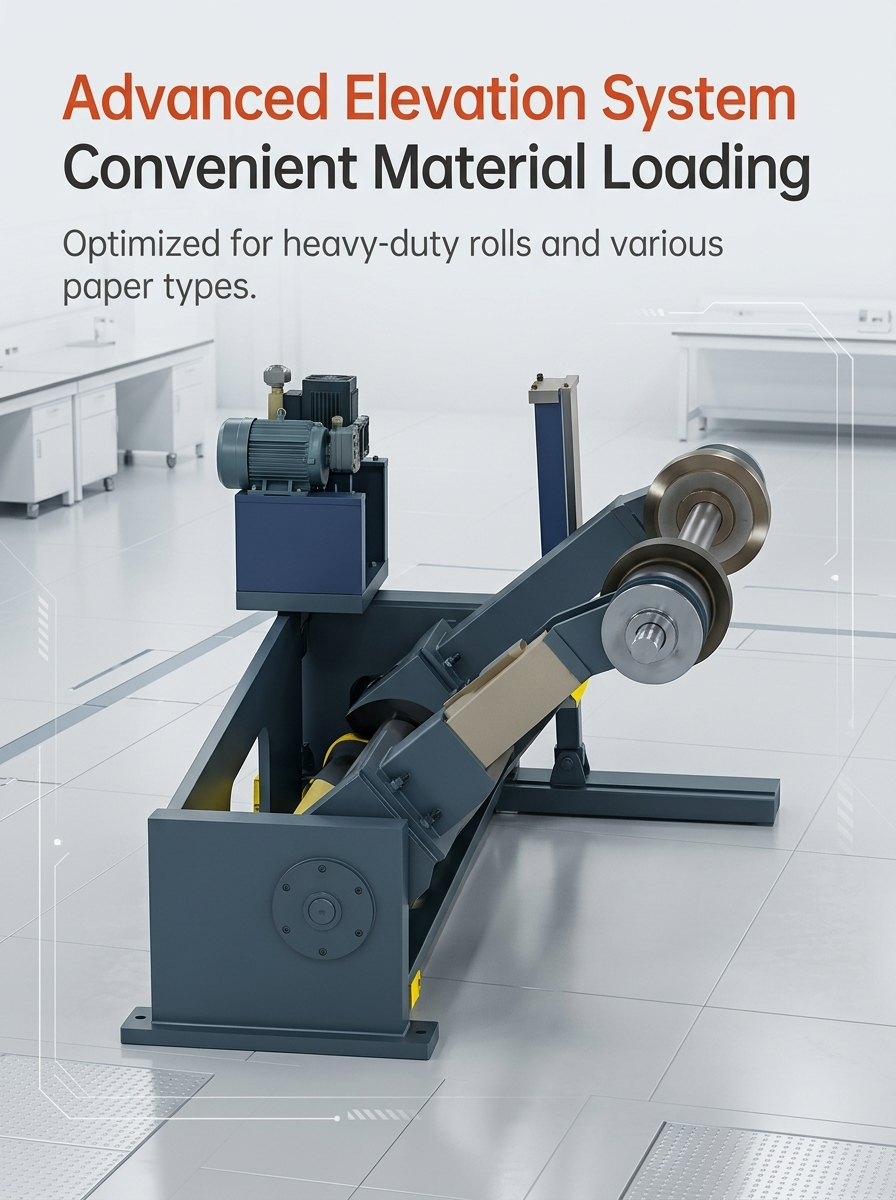

    The FQN1200/1400 Elevation Type Transverse Cutting Machine is designed for transverse cutting of various paper/board materials, including white/grey board, ivory board, kraft paper, and aluminum foil paper. With advanced industrial controller, touchscreen, and servo drive, it ensures ±0.2mm cutting accuracy, high speed, low waste, and convenient loading.
  • compartilhar：
    • Contate-nos Solicitação on-line
  • Whatsapp：8613738772345
ParameterFQN1200FQN1400
Cutting Width1200mm1400mm
Cutting Length400–1300mm400–1300mm
Stacking Height1300mm1300mm
Cutting Thickness (Grammage)60–500g/m²60–500g/m²

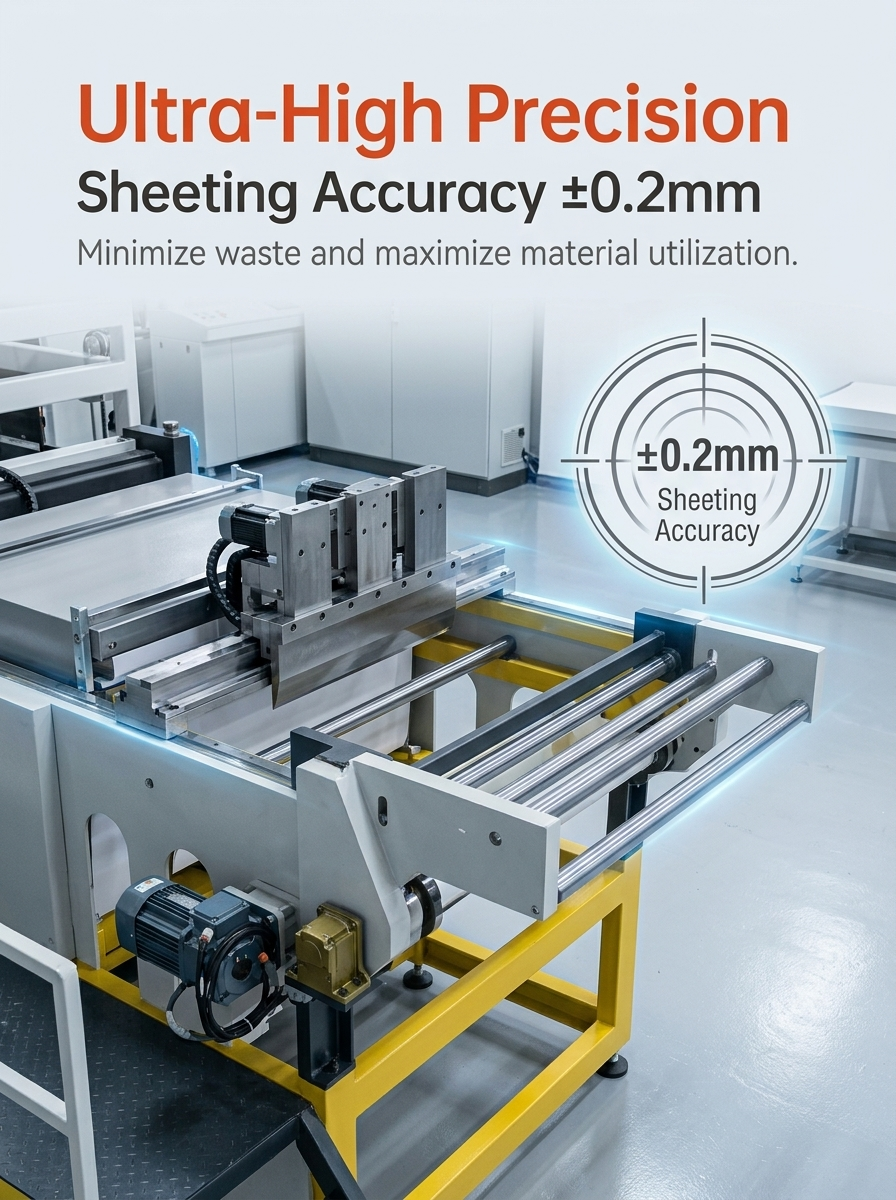

Cutting Precision±0.2mm±0.2mm
Cutting Speed95m/min90m/min
Feeding Diameter1500mm1500mm
Total Power8.2kW9kW
Overall Dimensions (L×W×H)6000×2200×2350mm6000×2400×2350mm








Tags relacionadas： Transverse Paper Cutting Machine Elevation Type Paper Sheeter High Precision Paper Sheeter
